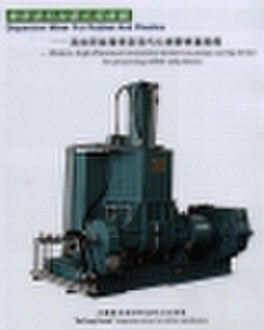

mixer

MAIN SPECIFICATION FOR KNEADER OF X(S)NSERIES Size Specification X(S)F-75×30 X(S)F-110×30 X(S)N-150×30 X(S)N-200×30 Chamber capacityL 180 250 325 Mixing capacity L 75 110 150 Main motor KW 110 185 220 Turning motor KW 2.2 4.0 5.5 Turning angle 0 140 140 140 Rotor speed (front / rear) rpm 30 /24.5 30 /24.5 30 /24.5 30 /24.5 Air compressure MPa 0.6 - 0.8 0.6 - 0.8 0.6 - 0.8 0.6 - 0.8 Air flow rate m3/min ≥1.0 ≥1.5 ≥1.5 PRESSURE OF COOLING WATER( FOR RUBBER)MPa 0.3-0.4 0.3-0.4 0.3-0.4 0.3-0.4 STEAM PRESSURE OF HEATING （for plastic ) MPa 0.5-0.8 0.5-0.8 0.5-0.8 0.5-0.8 OVER SIZE LxWxH mm 3360x2143x3135 3760x2712x3580 4075x3200x4000 WEIGHT Kg 10000 14500 19500 Features 1.Rubber or plastic stock can be plasticized or mixed in a closed and pressurized space with the temperature controlled so that the productivity is high and the quality is good and stable. 2.Optimization of the parameters such as the helical angle of rotor wings and the wing overlap length brings about even distribution of the stock. 3.All the parts in contact with stock are ground, plated with hard chrome and polished. The rotor wings are built up by welding with the abrasion-proof sintered carbide to resist abrasion and corrosion. 4.All the parts in contact with stock are of the jacket design where water/steam/medium oil is lead through to provide cooling or heating and can meet different requirements for the rubber or plastic mixing process. 5.Stock is fed through the rear door of the framework (or another port) and discharged by the mixing chamber tilting forward by 140°. Such a design makes it possible to arrange the upstream and the downstream process steps in a line and facilitates stock color changing and the mixing chamber cleaning. Purpose Usable for rubber or plastic plasticizing and mixing or rubber and plastic blending
